10" subwoofer with dual 1-ohm voice coils
double-pressed pulp cone with Santoprene rubber surround
dual-spider suspension
cast aluminum basket
power handling: 2000 watts RMS (4000 watts peak)
frequency response: 25-100
sensitivity: 82.39 dB
top-mount depth: 9.33"
mounting height: 1.7"
cutout width: 9.45"
ported box volume: 2 cu. ft.
Field-Replaceable Recone Kit available (sold separately)
grille not included
warranty: 2 years

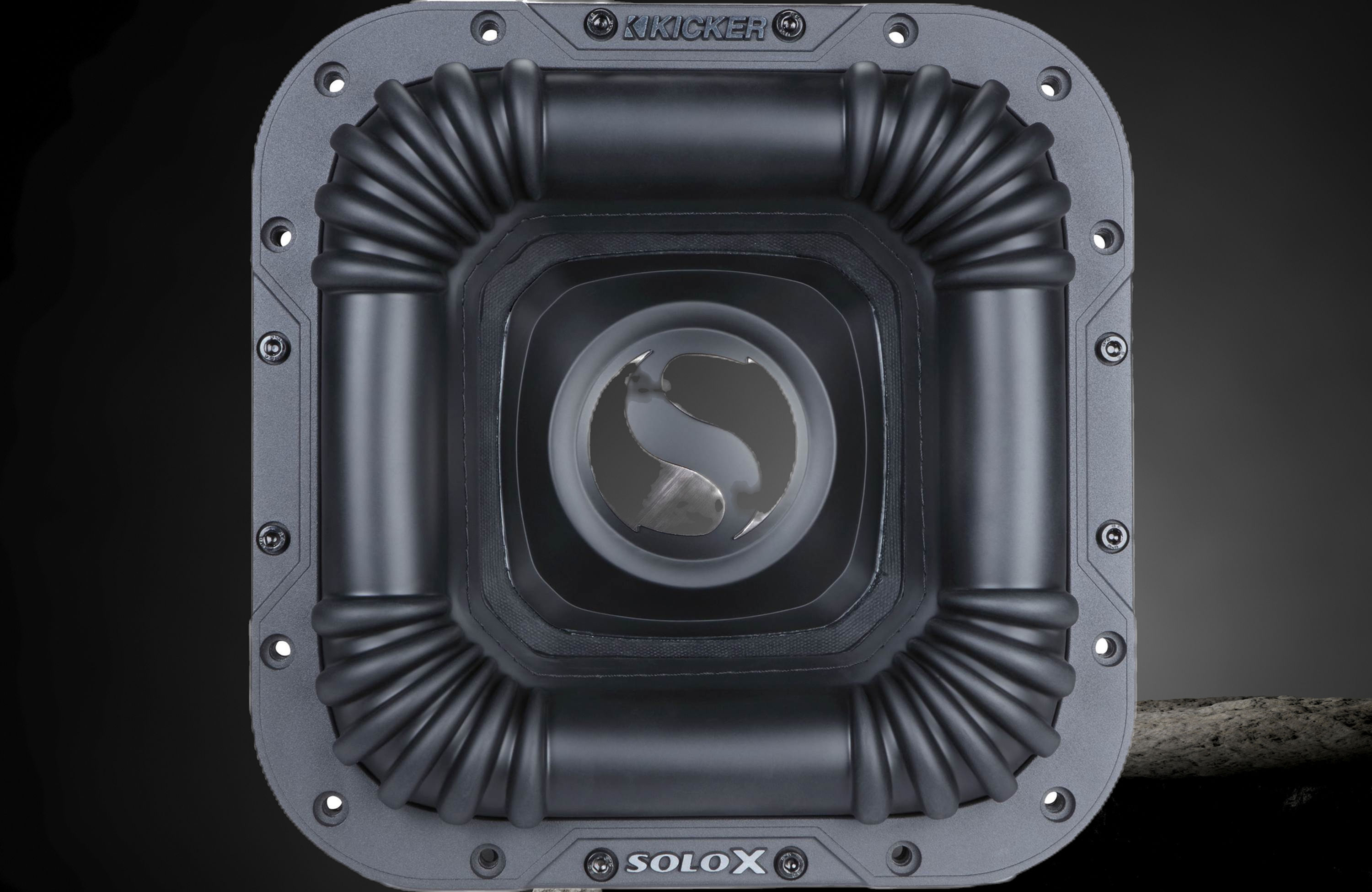

Kicker 49L7X101 SoloX L7X 10" dual 1-ohm voice coil component subwoofer

$699.95

Quantity

Features and Specs
Size	Square 10-inch
Impedance (Ohms)	0.5, 2
Cone Material	Pulp
Surround Material	Santoprene Rubber
Basket Material	Cast Aluminum
Grille	None included
Free-Air	No
Dual Voice Coil	Yes
Sensitivity	82.39 dB at 1 watt
Frequency Response	25 - 100 Hz
Max RMS Power Handling	2000
Peak Power Handling (Watts)	4000
Top Mount Depth (inches)	9 7/16
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	9 1/4
Frame Width	10.675
Frame Length	10.675
Vas (liters)	6.7928
Fs (Hz)	43.1
Qts	0.474
Xmax (millimeters)	31.25
Parts Warranty	2 Years
Labor Warranty	2 Years

Box Requirements
Ideal Sealed Box Volume (cubic feet)	N/A
Minimum Sealed Box Volume (cubic feet)	N/A
Maximum Sealed Box Volume (cubic feet)	N/A
Ideal Ported Box Volume (cubic feet)	2
Minimum Ported Box Volume (cubic feet)	N/A
Maximum Ported Box Volume (cubic feet)	N/A
Port diameter (inches)	N/A
Port length (inches)	N/A

Kicker 49L7X101 owner's manual
If you need assistance accessing this owner's manual, please give us a call.

One square 10" Dual 1-ohm voice coil subwoofer

Information sheet with QR code to owner's manual

2 Kicker decals

Template on box lid
